Product Details:
Payment & Shipping Terms:
|
| Product Name: | DIE CUT | Model: | ZYK1224 |
|---|---|---|---|
| Effective Cutting Area: | 1200mm*2400mm | Cut Materials: | Regid Board、paper Sheet、plastic Sheet |
| Max.working Speed: | (pcs/m) 220 | Base: | Water-based |
| Cutting Materials: | Foam, EVA, PVC,PP Sheets, Polypropylene Corrugated Sheet ,corrugated Cardboard Up To 60 Mm, Cartons, Laminates, Printing Blankets， Coating Plates, Preprinted Vinyl Films, Reflective Sheeting, Textile And Technical Fabrics, Soft, | Cutting Thickness: | Less Than 100mm |
| Cutting Thickness: | Less Than 100mm | Size: | 1300*1000mm, 1800*1500mm, 2500*1600mm, 3000*1600mm, 3000*2000mm, Customerised |
| Size: | 1300*1000mm, 1800*1500mm, 2500*1600mm, 3000*1600mm, 3000*2000mm, Customerised | Tools: | Oscillating Knife, Creasing Wheel, Pen, Laser Light, |
| Tools: | Oscillating Knife, Creasing Wheel, Pen, Laser Light, | Tools: | Pneumatic Tool, Vcut, Kiss Cut, CCD |
| TABLE: | Flatbed, Conveybelt, | TABLE: | Flatbed, Conveybelt, |
| High Light: | die cutting equipment,desktop die cutting machine |
||

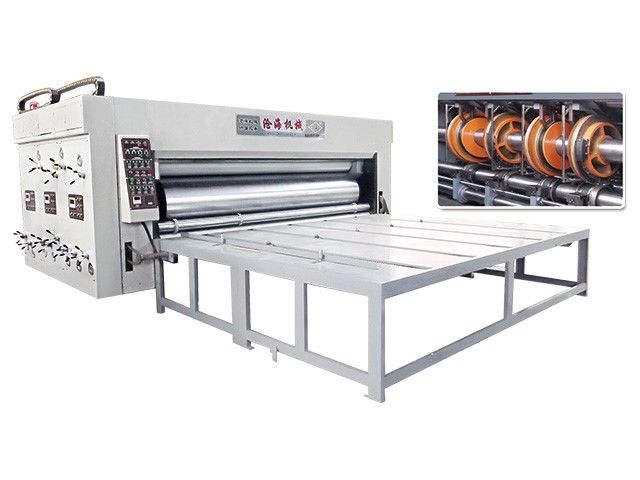

Water-based Printing Slotting Die-cutting Machine
MACHINE FEATURES
◆ It adopts chain-paper feeding.
◆ Transmission gear made from high-hardness heat Quality Steel which produced according to high precision requirements and adopt “+” slippery lumps gear transmission device and spray lubrication system.
◆ Rockery interval adjustment device,avoids central deviation of upper and lower roller led by traditional eccentric gear adjustment,thus ensures stable operation and clear printing pattern without double shadow.
◆ Auto cycling ink-feed system.Ink roller with pneumatic lift and separate rotating.
◆ All the axles of roller must be chrome-plating in order to increase the hardness.
◆ Printing,slotting and die cutting electric phase adjusting mechanism adopt planet type gear structure.(It can adjust 360 degrees while revolving and stopping.)
◆ Electrically separation and pneumatic locking.
◆ Module design,any combination of multicolor printing unit.
◆ Slot unit with manual synchronization adjustment for box height,all knife with electric adjustment,PLC touch screen control,and store orders.
◆ Glue roller adopts automatic displacement device,prolng the service life of anvil.
◆ Quick replacement rubber cushion is from abroad,it is easy for replacement and wear-proof.
◆ Auto count device to show right production volume.
.
