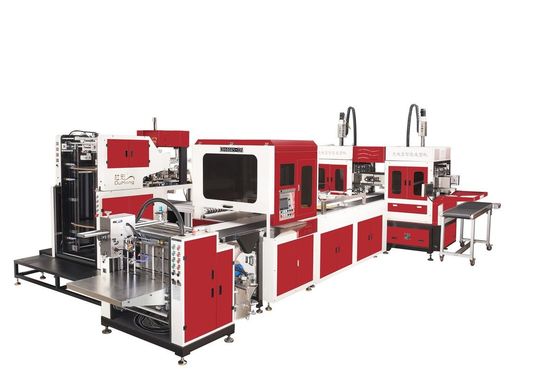

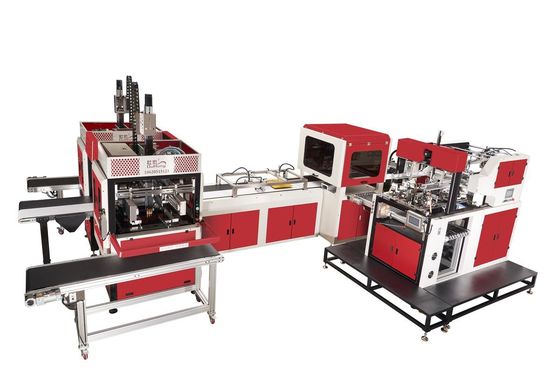

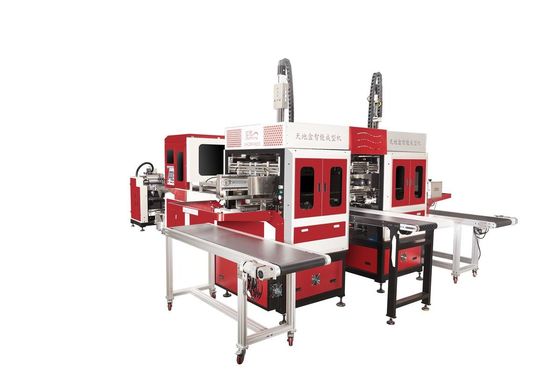

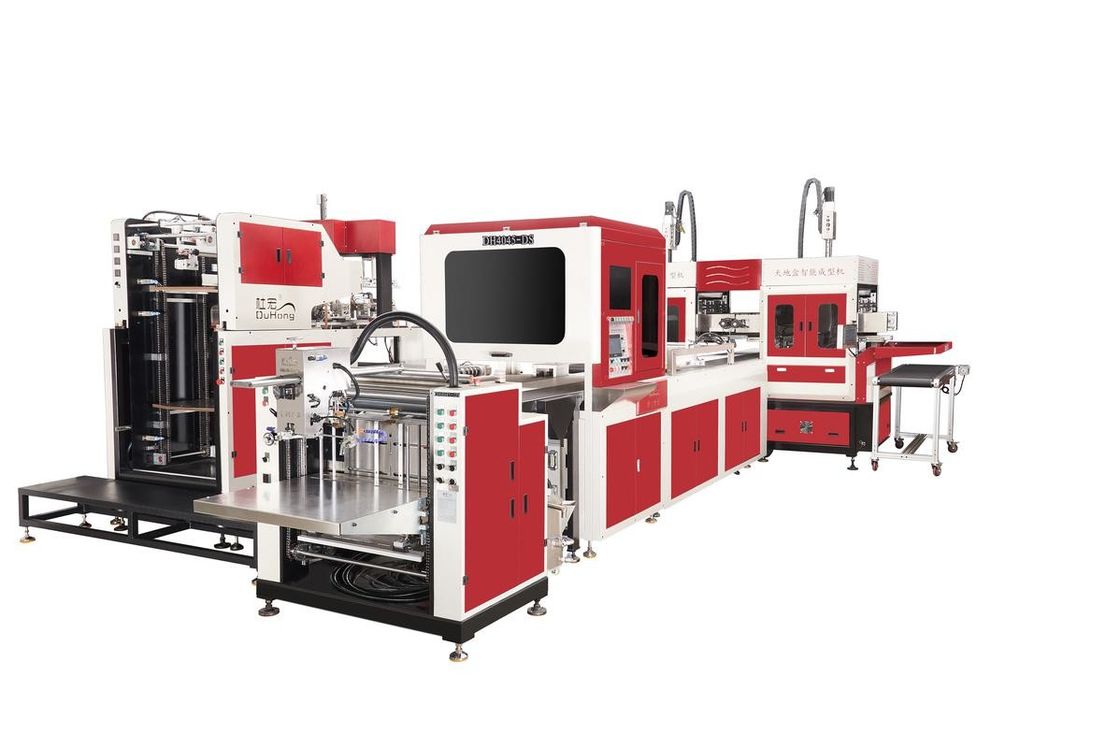

DH4045DS Automatic Rigid Box Machine is one of the most advanced fully auto box machines by our company.It is suitable to make various types of rigid boxes for mass production. Such as mobile phone boxes, gift boxes, cosmetic boxes, watch boxes, slating boxes, slip case(option), clam shell box(option) etc. Size range is bigger than ZD350A, more suitable for current packaging market. Machine s appear-ance is new design which is more safe and beautiful.
DH4045DS adopts PLC and man-machine control, camera tracing system, and can automatically feed cover paper , feed greybeard, tape four corners, spot greybeard, lift box, wrap box, fold corner edges and form box.
The feeder, the gluer and the conveyor are driven by well known servos which have continuously variable transmission and enjoys high accuracy, easy adjusting. and less time consumption. The spot unit adopts Germany camera with 5 million pixel and spotting accuracy to ±0.01mm. The forming unit employs linear slider and virtual cam driving system, guaranteeing the stable quality and fluent movement and enlarge the folding-in depth and corner edges.
one operators can run the machine under production 1200-1800 pcs/ hour .
1. Suit to all kinds of rigid boxes in mass production
2. Computer control for auto mould changing(optional)
3. Auto error stop and display
4. Automatically feed paper and greybeard
5. 24-hours control for glue pre-heating
6. Wrapper can input 300 product formula
7. Automatically cut and heat tape to paste the greyboard box's quad stayer (four corners), with independent man-machine control
8. Adopt servo and PLC control
9. Spotter by camera tracing system and SCARA (Selective Compliance Assembly Robot Arm) (spotting inaccuracy±0.01mm)
10. Wrapper can automatically and continually lift box, wrap paper, fold corner edge, fold in and form box
11.Automatic control system for glue viscosity(optional)
12. Remodel the taping m/c into Board assembling m/c (optional).
13.Suit to long paper ear box production.
14.Unique innovate glue application suit to both hot glue and cold glue.
15.Suit to groove paper production.
Technical Parameters
Production Process
| Paper size(A B) | Amin | 80mm |
| Amax | 600mm | |
| Bmin | 120mm | |
| Bmax | 700mm | |
| Paper thickness | 100-400g/㎡ | |
| Cardboard thickness | 0.8-3mm | |
|
Finished product (carton) size(W*L*H) Highest and widest cannot be used at the same time |
Wmin | 65mm |
| Wmax | 400mm | |
| Lmin | 65mm | |
| Lmax | 450mm | |
| Hmin | 15mm | |
| Hmax | 120mm | |
| Fold-in edge size(R) | Rmin | 10mm |
| Rmax | 90mm | |
| Position accuracy | ±0.10mm | |
| Production speed | 25-33 sheets/min | |
| Total power | 25.6KW/380V 3phase | |
| Electric power | 5.1kw | |
| weight | 5100kg | |
| Machine size (L*W*H) | L8300*W5500*H3400 | |
