Product Details:
Payment & Shipping Terms:
|
| Product Name: | LASER CUTTING MACHINE | Model: | M-1325HC |
|---|---|---|---|
| Effective Cutting Area: | 1300mm*2500mm | Cutting Material: | Acrylic, Wooden |
| Maximum Cutting Thickness: | 20mm | Cutting Materials: | Foam, EVA, PVC,PP Sheets, Polypropylene Corrugated Sheet ,corrugated Cardboard Up To 60 Mm, Cartons, Laminates, Printing Blankets， Coating Plates, Preprinted Vinyl Films, Reflective Sheeting, Textile And Technical Fabrics, Soft, |
| Cutting Thickness: | Less Than 100mm | Cutting Thickness: | Less Than 100mm |
| Size: | 1300*1000mm, 1800*1500mm, 2500*1600mm, 3000*1600mm, 3000*2000mm, Customerised | Tools: | Oscillating Knife, Creasing Wheel, Pen, Laser Light, |
| Tools: | Pneumatic Tool, Vcut, Kiss Cut, CCD | Tools: | Pneumatic Tool, Vcut, Kiss Cut, CCD |
| TABLE: | Flatbed, Conveybelt, | ||
| Highlight: | Anti Rust Acrylic Sheet Cutting Machine,Steadily Stainless Steel Cutting Machine,20mm Acrylic Sheet Cutting Machine |
||
acrylic sheets cutting machine,Metal and Nonmetal Laser Cutting Machine, carbon steel cut, MDF CUT, Stainless steel cut

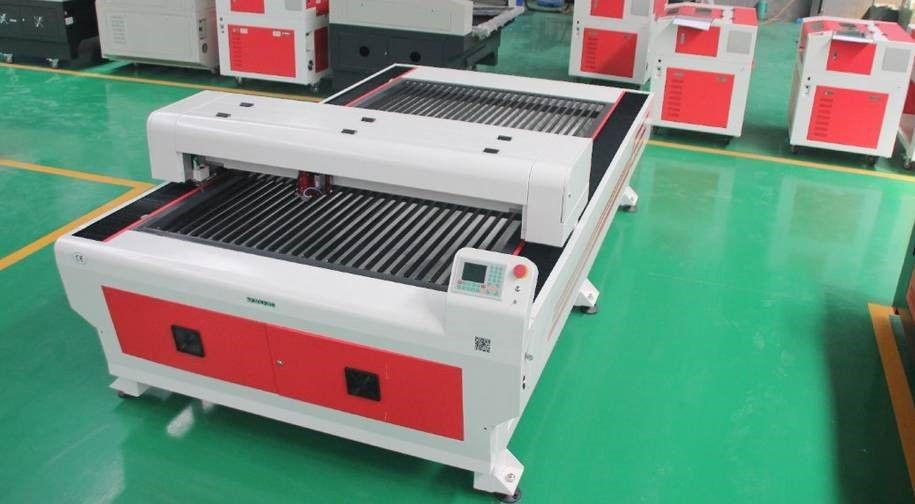

M-1325HC 150w laser cutting machine for metal and non-metal is equipped with 280w laser power co2 laser tube, can be used for cutting carbon steel, stainless steel and non metal materials,such as acrylic,die board, MDF,plywood,etc.
Applicable materials: Acrylic, stainless steel, carbon steel, MDF,die board.
Applicable show:metal spectacle frame, furniture plate cutting, MDF photo frame cutting,building model cutting.
1. Technical Parameter:
| Name: | M-1325HC Metal and Nonmetal Laser Cutting Machine |
| Processing area | 1300mm*2500mm |
| Work Table | Blade |
| Laser power | Yongli Brand 150W (peak value can be up to 180w) |
| Laser type: | Sealed Co2 glass laser tube |
| Cooling mode: | Water cooling and protection system |
| Positioning Accuracy | ±0.05mm(with red dot) |
| Support graphic format | BMP,PLT,DST,AL,DXF,etc |
| Power Supply | AC220±10%,50-60HZ 10A max |
| Working Temperature | 0-45℃ |
| Working Humidity | 5%-95% |
| Smoke | By funnel and beam |
| Controlling System | Ruida |
| Machine size | 3400x1883x1100mm |
| Compatible software | Coreldraw, AutoCAD, Photoshop |
2. Cutting Ability
| Material | MDF | Acrylic | Stainless Steel | Carbon Steel |
| Max. Cutting Thickness(mm) | 8 | 25 | 1.5 | 1.2 |
3. Machine Feature:
1) Anti-dust system to avoid the dust, improve the lift of rail and belt, make the machine work more steadily.
2) The machine side with streamlined adornment improves the visual effect. It is more popular in market
3) Blade surface and shell side surface at the same height.It is more convinent for up-down loading.
4) Laser head with the laser cover outside.Convinent operator to monitor the process at real-time.
5) With the improved panel, the layout of electrical appliances more neat, beautiful and reasonable, further to elimimate interference.
6) Reasonable distribution of electric appliances, optimizing the heat dissipation effect.
7) Use imported Italy synchronous belt, make sure processing stability and high precision.
4. Product Samples:
