Product Details:
Payment & Shipping Terms:
|
| Product Name: | Flatbed Digital Cutter | Model: | DCZ7X |
|---|---|---|---|
| Effective Cutting Area: | 2500*1600mm 1700*1300mm 1300*1000mm | Max Aped: | 1400mm/s |
| Smallest Cutting Diameter: | 6mm | Maximum Cutting Thickness: | 60mm |
| Cutting Materials: | Foam, EVA, PVC,PP Sheets, Polypropylene Corrugated Sheet ,corrugated Cardboard Up To 60 Mm, Cartons, Laminates, Printing Blankets， Coating Plates, Preprinted Vinyl Films, Reflective Sheeting, Textile And Technical Fabrics, Soft, | Cutting Thickness: | Less Than 100mm |
| Cutting Thickness: | Less Than 100mm | Size: | 1300*1000mm, 1800*1500mm, 2500*1600mm, 3000*1600mm, 3000*2000mm, Customerised |
| Size: | 1300*1000mm, 1800*1500mm, 2500*1600mm, 3000*1600mm, 3000*2000mm, Customerised | Tools: | Oscillating Knife, Creasing Wheel, Pen, Laser Light, |
| Tools: | Oscillating Knife, Creasing Wheel, Pen, Laser Light, | Tools: | Pneumatic Tool, Vcut, Kiss Cut, CCD |
| Tools: | Pneumatic Tool, Vcut, Kiss Cut, CCD | TABLE: | Flatbed, Conveybelt, |
| Highlight: | corrugated box cutting machine,sample making machine |
||
corrugated paper cardboar paper carton box maker , oscillating cut knife cut creasing, 2500*1600mm cut size
Description:

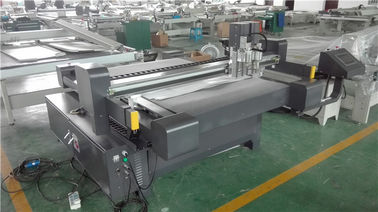

This DCZ7X series high speed digital flatbed cutter is a newly developed cutting system aiming at the industries like packaging, printing, advertisement, display, etc. Configured with versatile tools including oscillating knife, creasing wheel, drag knife, V cutting knife and pen, this high speed cutting equipment whose maximum cutting depth is 60mm, can be used to cut corrugated paper, honeycomb board, card paper, foam, grey board, KT board, PVC expansion board and other materials. This product also called box sample maker, sample maker, AD cutting machine, Display cutting machine, foam cutting machine, smart digital cutting system and so on, according to the different cutting material and application. This product can be used for sample making and small scale production in the industries of packaging, printing, advertisement, etc.
Main Features:

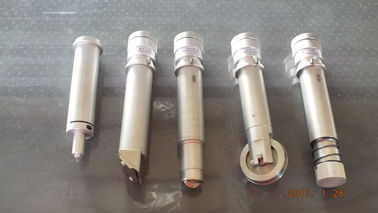

1. Oscillating cutting knife, accurate and professional cutter for soft materials;
2. Marking pen.
3. Hobbing cutter, specialized in fabric cutting.
4. V-cutter, cut grooves for carton.
5. Milling-cutter, for relatively hard materials, eg: Acrylic.
6. Creasing wheel, for making folding lines.
(1 and 2 are standard configuration, 3 to 6 are optional.)
Cutting materials:
Corrugated paper, honeycomb board, card paper, foam, grey board, Advertising cloth, flag cloth, canvas, KT board, PVC expansion sheet etc.
Application:
Ads, Display, Packaging, Graphic.
GUARANTEE & AFTER SALE SERVICE
1.One year guarantee for whole machine except consumables such as knife blade, mat.
2.You are welcome to our company to have a professional trainning and observation.
3.Calling or door-to-door service.
4.24 hour online and hot line services.
Use friendly-English software, usual manual and detailed videos.
Specification:
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Cutting Samples:
Optional
Video registration system
