Product Details:
Payment & Shipping Terms:
|
| Product Name: | Paper Box Flatbed Digital Cutter | Model: | DCZ50-4 |
|---|---|---|---|
| Effective Cutting Area: | 2500*1600mm | Max Aped: | 1000mm/s |
| Smallest Cutting Diameter: | 6mm | Maximum Cutting Thickness: | 15mm |
| Cutting Materials: | Foam, EVA, PVC,PP Sheets, Polypropylene Corrugated Sheet ,corrugated Cardboard Up To 60 Mm, Cartons, Laminates, Printing Blankets， Coating Plates, Preprinted Vinyl Films, Reflective Sheeting, Textile And Technical Fabrics, Soft, | Cutting Materials: | Foam, EVA, PVC,PP Sheets, Polypropylene Corrugated Sheet ,corrugated Cardboard Up To 60 Mm, Cartons, Laminates, Printing Blankets， Coating Plates, Preprinted Vinyl Films, Reflective Sheeting, Textile And Technical Fabrics, Soft, |
| Cutting Thickness: | Less Than 100mm | Size: | 1300*1000mm, 1800*1500mm, 2500*1600mm, 3000*1600mm, 3000*2000mm, Customerised |
| Size: | 1300*1000mm, 1800*1500mm, 2500*1600mm, 3000*1600mm, 3000*2000mm, Customerised | Tools: | Oscillating Knife, Creasing Wheel, Pen, Laser Light, |
| Tools: | Oscillating Knife, Creasing Wheel, Pen, Laser Light, | Tools: | Oscillating Knife, Creasing Wheel, Pen, Laser Light, |
| Tools: | Pneumatic Tool, Vcut, Kiss Cut, CCD | Tools: | Pneumatic Tool, Vcut, Kiss Cut, CCD |
| TABLE: | Flatbed, Conveybelt, | TABLE: | Flatbed, Conveybelt, |
| TABLE: | Flatbed, Conveybelt, | ||
| Highlight: | cardboard box cutting machine,cardboard cutter machine,servo motor carton box making machine |
||

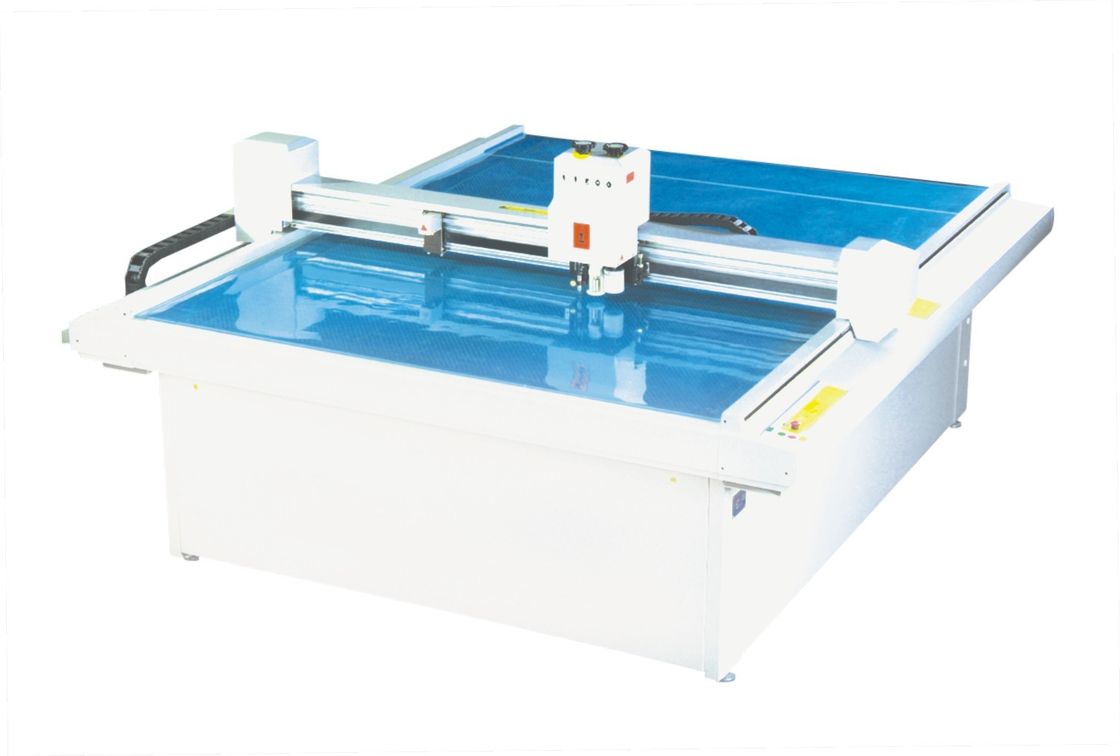

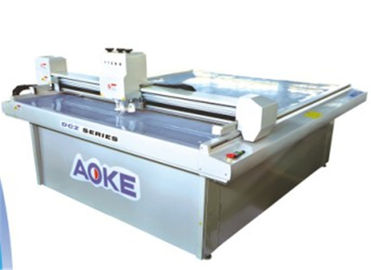

flatbed digital cutter servo motor vacuum pump oscillating knife digital cutPaper Box Cutting machine
description
a.DCZ50 series paper box carton sample making machine is AOKE new developed carton sample making system on DCZ30 series basis. Dut to the four tool head design, the functions improves a lot comparing with original one. DCZ50 series sample making machine make cutting, creasing, drawing available undertaking AOKE machine’s stable, high speed, high accuracy. it could meet sample making or small production require of packaging company, corrugated box manufacturer, color box manufacturer, color printing manufacturer,, die cutting manufacturer. it could cut corrugated board ,chipboard,foam board,plastic board,thin wood board,leather,cloth, etc. we are great reputed by customers from packaging,advertisement,printing,die cutting,electron,gasket,sign industries.
The main character of DCZ50 is as following:
I·Four tools include oscillating knife tool, drag knife tool, creasing tool, plotting pen.
II·Carton and box can reach to perfect cutting performance
III·Convenient half cut set to achieve perfect half cutting performance
IV·Safety guard system is equipped to avoid injury
V·Brunt model sold well in EU and USA market
1.Fast, accurate and no burning. It cuts at a speed of 1500mm/s(max.) by knife, not laser.
2.Safe. Special safety sensory device meets the European standard.
3.Professional. Oscillating knife, V-cutter, milling knife, creasing wheel and marking pen are available and optional. The profession machine can meet almost any requirement in package industry. 4.Saving. Labor saving, material saving and power saving.
5.Compatitable. Support any design software which can output files in DXF or PLT formats.
(Such as AutoCAD, AI, CorelDraw)
Specification
| Model | DCZ502516 | DCZ501713 | DCZ501310 |
| Effective cutting area | 2500*1600mm | 1700*1300mm | 1300*1000mm |
| Configuration | Oscillating knife,pen,creasing wheel,drag knife | ||
| sMaximum cutting thickness | 15mm | ||
| Control line and driver | Servo | ||
| Precision | ≤0.1mm | ||
| Vacuum | 5.5kw | ||
| Data form | HPGL,DXF,PDF | ||
| Voltage | 220v±10%50Hz | ||
| Data port | PCI port | ||
| Data Transmission speed | 10MB/s | ||
| Input cushion area | 32MB | ||
| Occupy dimension(L*W*H) | 3165*2545*1250mm | 2365*2245*1250mm | 1960*1935*1250mm |
| Note | Other size can be customized. | ||
