Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Voltage: | 220v |
|---|---|---|---|
| Application: | Packaging, Printing, Advertising | Automatic Grade: | Automatic |
| Cutting Materials: | Foam, EVA, PVC,PP Sheets, Polypropylene Corrugated Sheet ,corrugated Cardboard Up To 60 Mm, Cartons, Laminates, Printing Blankets， Coating Plates, Preprinted Vinyl Films, Reflective Sheeting, Textile And Technical Fabrics, Soft, | Cutting Thickness: | Less Than 100mm |
| Size: | 1300*1000mm, 1800*1500mm, 2500*1600mm, 3000*1600mm, 3000*2000mm, Customerised | Size: | 1300*1000mm, 1800*1500mm, 2500*1600mm, 3000*1600mm, 3000*2000mm, Customerised |
| Tools: | Oscillating Knife, Creasing Wheel, Pen, Laser Light, | Tools: | Oscillating Knife, Creasing Wheel, Pen, Laser Light, |
| Tools: | Pneumatic Tool, Vcut, Kiss Cut, CCD | Tools: | Pneumatic Tool, Vcut, Kiss Cut, CCD |
| Tools: | Pneumatic Tool, Vcut, Kiss Cut, CCD | TABLE: | Flatbed, Conveybelt, |

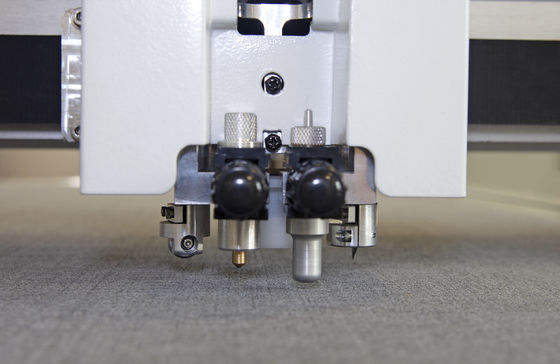

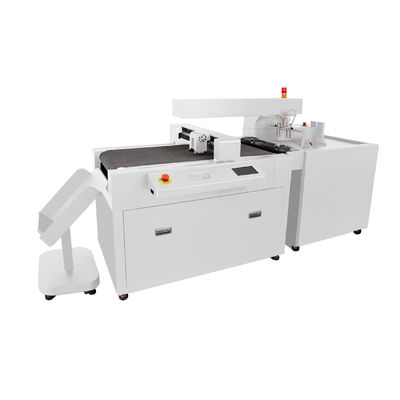

MEC-A0406 cutting plotter is a model with superior speed and accuracy. Supported by a DSP control center and digital servo motor, it wins the market by its best cost-performance. The cutting plotter has two tool-holders on the head and is universal for inserts of cutting knifes, scoring tools or plotting pens. One cutting plotter can maximize the application range. The LS series cutting plotter is equipped with various kinds of cutting and impressing blades and can be used in the cutting, plotting and impressing of many materials such as PVC board, PP board and white card paper. The cutting plotter helps you save time while reducing the cost. It is able to process cardboards, paper, PVC, film, sticker, etc. The maximum cutting depth is up to 2mm, depending on material density. We offer an English LCD menu. We welcome custom orders.
| Machine configuration | |
| model name | MEC-A4060 |
| Cutting Control System | X-high-power brushless servo motor |
| Y-high-power brushless servo motor | |
| Positioning Sensor type | digital camera(CCD) |
| Control panel | 7 inch capactive touch screen |
| Number of holders | Double tool holders |
| Tangential blade type | Blade/pen/creasing tool |
| Media hold method | vacuum pump |
| Scanning code type | MARK/QR Code |
| Maximum width | 730mmX1015mm |
| Maximum cutting size | 660mmX980mm |
| Scanning speed | 5-10s |
| Maximum actual cutting speed | 100mm/s-700mm/s |
| 10mm/s一步 | |
| Maximum cutting force | Creasing:0-1900gf(10gf/step) |
| Blade:0-1900gf(10gf/step) | |
| Maximum paper weight | 600g(Varies from different cutting materials) |
| Minimum character cutting size | About 10mm²(Varies from contour patterns and medias) |
| Mechanical resolution | 0.02mm |
| Programmable resolution | HPGL 0.025mm |
| Repeat precision | ≤0.05mm |
| Cutting Media types | self-adhensive sticker, cardboard, corrugated paper,plastick, etc |
| Connectivity | USB,TCP, Wifi, U disk |
| Software Compatibility | Corel Draw/ Illustrator-plug in (U disk interface) |
| Working Voltage and current | 100VAC至120VAC,50/60Hz,Max current 6.8A 200VAC至240VAC,50/60Hz,Max Current 3.4A |
| Power | Max.350W |
| Vacuum pump voltage and current | 110VAC,50Hz,Rated Current 12.4A,60Hz,Rated Current 17.2A 220VAC,50Hz,Rated Current 6.2A,60Hz,Rated Current 8.6A |
| Power (Vacuum Pump) | 50Hz,1.1KW；60Hz,1.3KW |
| Operation enviroment | Temperature :+5℃到+35℃(Fahrenheit 41-95),Humidity:35%至70%RH(Non-condensing) |
